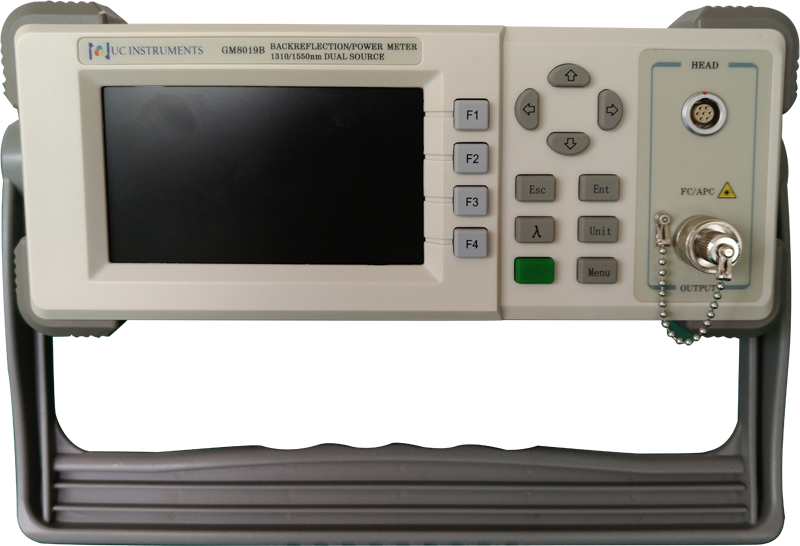

GM8019B+GM83001E（1310/1550nm）Dual Laser Source Back Reflection is a simple structure,direct display of the measuring instrument, can be used for measuring optical fiber devices, systems,and the light is reflected and insertion loss power connector on the back, also can be used as a single output of light source, simple to use, It is an ideal measuring instrument for optical fiber jumper.

GM8019B instrument has two light source modules at 1310 nm and 1550nm respectively，the user can also make a combination of 850, 980, 1310,1490,1550,1610, and 1625nm wavelength. The output port of the instrument uses FC/APC connector with very low back reflection. When the device (DUT) is connected to the jumper wire and the DUT output end is wound, the screen immediately displays the back reflection value of DUT. The performance of GM8019B is also very stable with low back reflection and insertion loss.

Characteristic

High performance and fast startup
Optical power value can be measured separately
A point light source can be used separately
Measurable power and back reflexes are measured
Small and affordable

Application

Optical connector insertion loss
CWDM, DWDM, PLC, AWG device test
Fiber optic cable test

Specifications

UC INSTRUMENTS Technical support and service

UC INSTRUMENTS provides our customers with high performance, high quality, low price measuring instruments and testing systems. Our powerful technical resources can help you select and correctly use the appropriate products of our company to meet your application needs. Each instrument we sell has global warranty service, providing a factory warranty of at least 12 months.
