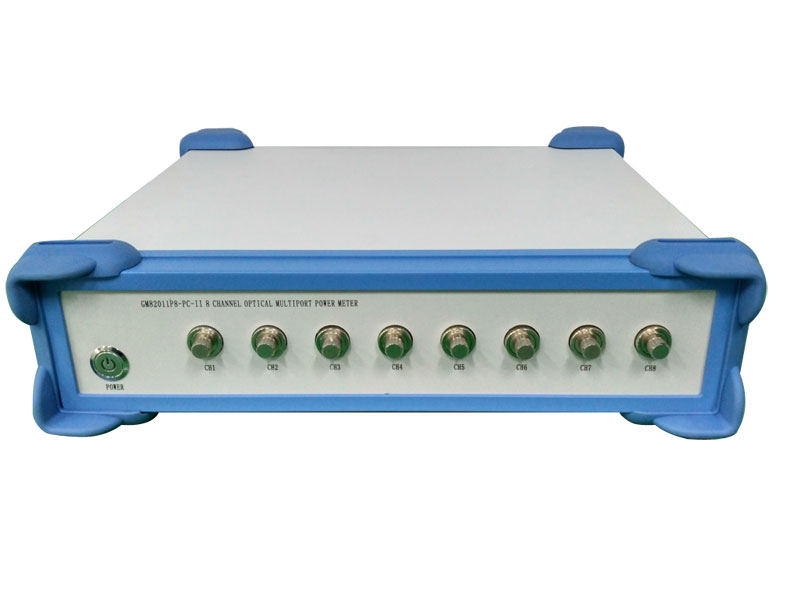

GM82011P8-PC-V eight channel optical power meter

Product specification

Summary

GM82011P8 channel optical power meter is an instrument controlled by PC for power measurement of all multi port passive devices. It can also test multiple single port devices at the same time. The instrument is mainly used for precision multi channel wave division multiplexing DWDM component test, multiplexer, PON splitter, wavelength selective switch (WSS), reconfigurable optical differential multiplexer ROADM, optical waveguide grating array element AWG and planar waveguide PLC components and modules, and other commonly used multi port optical measurement and optical fiber application. The system can extend the integrated tunable laser source, optical attenuator and polarization controller to form a high performance passive device and module automatic test system platform.

Performance

High precision, wide dynamic power range
The speed of data acquisition and transmission to computer is fast
Multi channel power meter simultaneous measurement function
Compact structure
Connect to the computer through the USB/ Ethernet interface
affordable

Application

Measurements of PLC, AWG, WSS, ROADM multiport devices and modules
Application of fiber grating sensor
Measurement of polarization film dispersion PMD and polarization dependent loss PDL
It can be integrated into a passive optical fiber measurement system

Technical specification

Product model	*GM82011P8*_V
Channel number	8 channel
Working wavelength	850 ~ 1700 nm
Power measurement range	+ 3 ~ -80 dBm
Average sampling time	0.001 mS ~ 1000 mS
dynamic range PM range -57 dBm -37 dBm -17 dBm +3 dBm	Typ. >23dB Typ. >23dB Typ. >23dB Typ. >23dB
Noise（15000個(gè)data point） PM range -57 dBm -37 dBm -17 dBm +3 dBm	Average sampling time 1uS 50uS Typ.. <0.05dB <0.03dB Typ.. <0.04dB <0.02dB Typ.. <0.03dB <0.01dB Typ. <0.03dB <0.007dB
Application fiber type	Standard SM and MM up to 62.5 um core size
Absolute accuracy	+/- 4% (1200 nm ~ 1610 nm)
Relative accuracy	< 0.02 dB Typical
Power linearity	<= +/- 0.06 dB (1200 nm ~ 1610 nm, + 0~ -60 dBm)
Return loss	> 40 dB
working temperature	0～ +40℃
Storage temperature	-30～+80℃
Calibration cycle	2 years
Power supply	100 - 240 v ac + 10%, 50 to 60 hz, 100's max.
Display interface	PC display interface
communication interface	USB
humidity	<95% R.H. from 0°C to +45°C
Outline size	Standard 1.5U chassis
weight	10.0 lbs

Application software interface
