GM8015
Date：2017-02-22 Click：5942

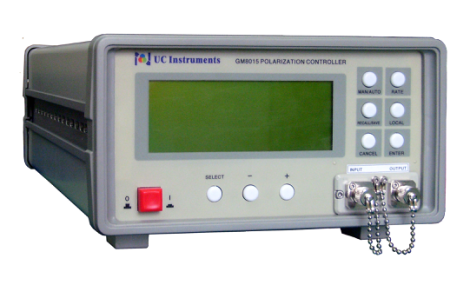

GM8015 electric PDL generator
User's Manual
This manual is applicable to GM8015 modules with firmware versions from V2.00 to V2.22.
Summary
GM8015 electric PDL generator is an electric PDL generator formed by automatic programming with a mechanical PDL generator. Independent four rotating rings, independently controlled by programming, can generate any PDL state. Electric programming control can effectively and accurately generate more possible PDL state, obtain more PDL state, so that the reliability and accuracy of measurement are well guaranteed. DWDM, GFF, INTERLEAVER, ISOLATOR and other passive optical devices PDL measurement of very important measuring instruments.
Product specification
|
Product model |
GM8015 |
|
Working principle |
4 optical fiber rings |
|
Wavelength range |
1200 nm ~ 1700 nm |
|
Differential loss |
< 1.0 dB |
|
The value of PDL |
≤ 0.01 dB (APC≤ 0.02 dB) |
|
Optical interface |
FC/PC (factory default), customer can customize FC/APC |
|
communication interface |
RS232 |
|
Power supply |
AC 100 - 240 V, 50 - 60 Hz |
|
working temperature |
0 ~ 40°C |
|
size |
350 mm X 200 mm X 120 mm |
|
weight |
5.3 kg |
