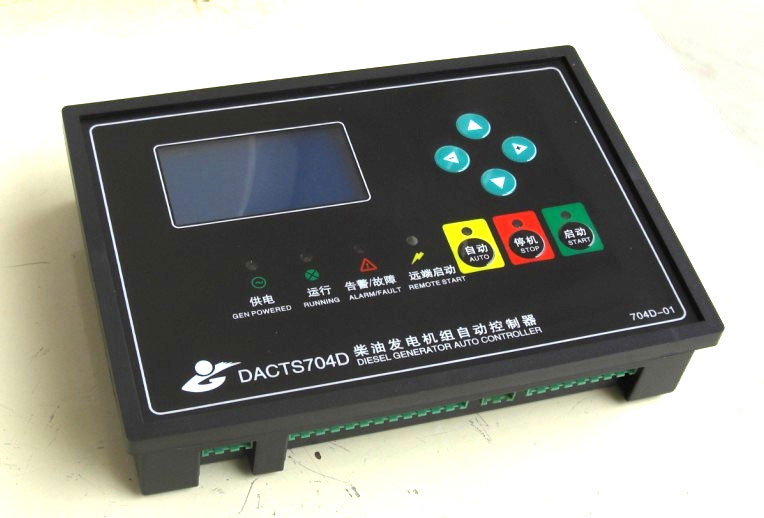

DACTS704D controller
|
The DACTS704D monitors the engine, indicating the operational status and fault conditions, shutting down the engine automatically and giving a true first up fault condition of an engine failure by a COMMON ALARM LAMP. The LCD display indicates the fault. The user also has the facility to view the system operating parameters via the LCD display.
FEATURESl True RMS Volts, Current and Power monitoring l Automatic start and stop the diesel l Six configurable inputs l Six configurable outputs l Failure shutdown protection function l One configurable sensor curve l Save at most 32 failure records l Chinese and English display languages l Fully configurable via PC software l Front panel editor l LCD and LED alarm indication l Configurable timers and alarms l RS232 communication interface l RS485 communication interface l A robust plastic case designed for front panel mounting houses the module. Connections are via locking plug and sockets. l Security levels - PC software has password system to control access to PC software features. SPECIFICATIONDc supplyContinuous voltage rating: 8 to 36V DC Alternator inputsAC input: 25 - 620V (L-L); 15 - 360V (L-N) Relay outputsStart & Fuel : 16A / 30V DC at supply voltage Configurable 1-5: 5A / 30V DC at supply voltage |
Configurable 6: 3A / 30V DC at supply voltage
Dimensions
Overall: 206mm（W）X 146mm（H）X 44mm（D）
Panel cut-out: 196mm（L）X 136mm（W）
The module provides engine and electrical metering facilities via the wide screen LCD display with the following instrumentation displays, accessed via the up push-button:
|
Generator volts L1,L2,L3 |
Energy |
|
Generator volts L1-L2,L2-L3,L3-L1 |
Battery volts |
|
Load current L1,L2,L3 |
Coolant temperature |
|
Generator frequency Hz |
Oil Pressure |
|
Engine Speed RPM |
Fuel level |
|
Generator active power |
Oil temperature |
|
Generator apparent power |
Runtime |
|
Power factor |
Start number |
