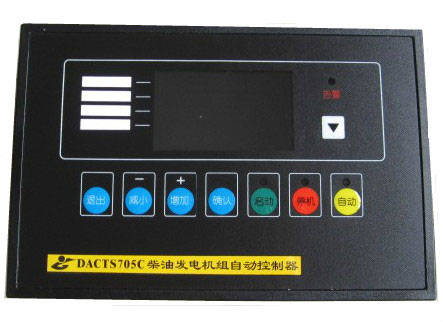

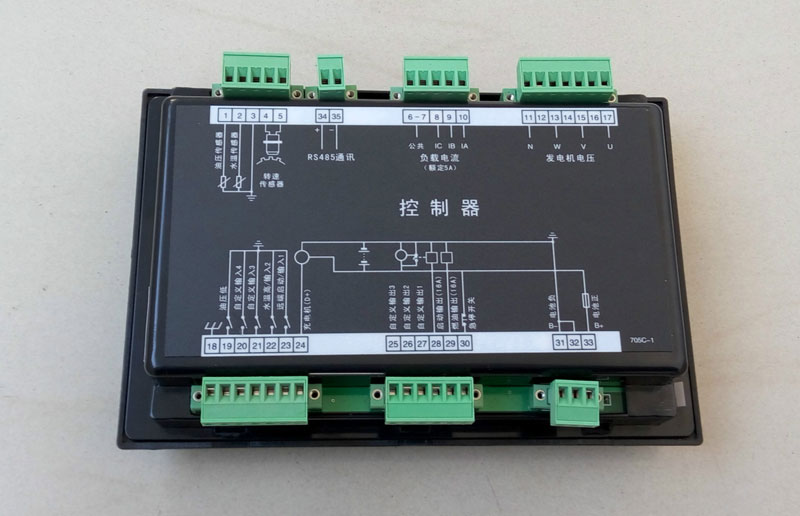

DACTS705C Diesel generator set controller
The DACTS705C module was designed to start and stop the diesel generator manually or automatically. The DACTS705Cmonitors the operating engine at real-time, shuts down the engine automatically for an engine failure. The user also has the facility to view the system operating parameters via the LCD display.
FEATURES
l Four configurable inputs
l Three configurable outputs
l Failure shutdown protection function
l Fully configurable via PC software
l Front panel editor
l LCD and LED alarm indication
l Configurable timers and alarms
l RS485 communication interface
SPECIFICATION
DC supply
Continuous voltage rating: 8 to 36V DC
Alternator inputs
AC voltage: 0 - 450V (L-L); 0 – 280V (L-N)
AC current: 0 -5AAC
Generator frequency: 0 - 99HZ
Relay outputs
Start & Fuel :16A/ 30V DC at supply voltage
Configurable 1-3 : VCC/2ADC
Operating temperature:
-10℃～60℃
Dimensions
Overall:224mm（W）X149mm（H）X47mm（D）
Panel cut-out:197mm（W）X135mm（H）
The module provides engine and electrical metering facilities via the LCD display with the following instrumentation displays, accessed via the [down] push-button:
|
Generator volts three lines |
Engine Speed RPM |
|
Generator volts three phases |
Coolant temperature |
|
Load current L1,L2,L3 |
Oil temperature |
|
Generator Active power |
Oil Pressure |
|
Generator Apparent power |
Battery volts |
|
Power factor |
Charging voltage |
|
Generator frequency Hz |
Runtime |
