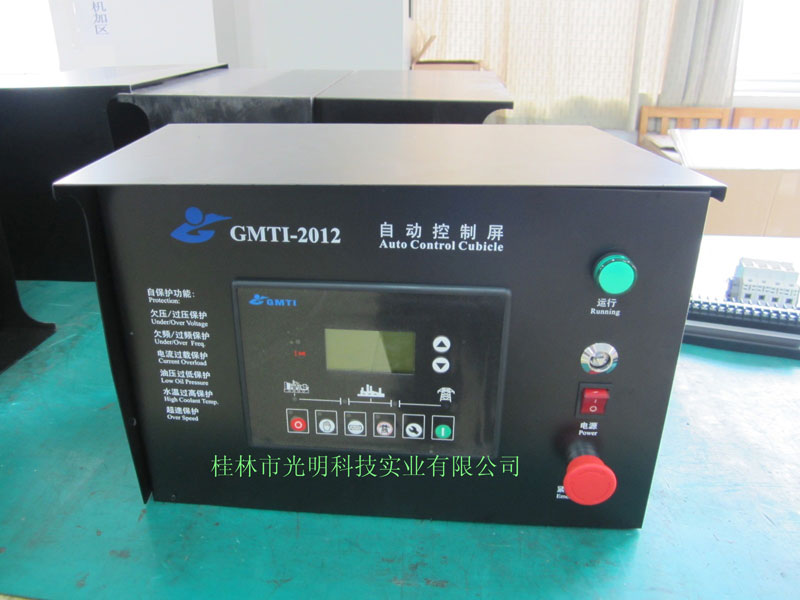

GMTI-2012 control panel
Date：2017-02-22 Click：5317
GM2000 SERIES GENSET CONTROLLER Version1.0
INSTALLATION INSTRUCTIONS
The contents are intended for quick guidance and supplement supplement to the user who is using GM2000Ccontroller.
Please read the standard manual for more details.
GM2000C controller has four variants as shown
Note1:GM2011C/GM2012Cwith RS485 interface,GM2011/GM2012 without RS485 interface.
Note2: GM2011C/GM2012C is taken as an example to describe in this manual.
1 KEY FUNCTION DESCRIPTION
|
|
Stop/ Reset
|
Can stop generator under mode of Manual/Auto; Can reset shutdown alarm;press this key at least 3 seconds to test panel indicators are OK or not (lamp test); During stopping process, press this again can stop generator immediately. |
|
|
Start |
Start genset under Manual or Auto mode. |
|
|
Manual |
Pressing this key will setthe the module as Module mode. |
|
|
Auto |
Pressing this key will setthe the module as Auto mode. |
|
|
Running with load |
controller is under manual testing mode. Under this mode, genset will run with load automatic when gens are normal. (GM2011Cwithout). |
|
|
Set/ Confirm |
Enters into Set menu after pressing this, and can shift ursor to confirm. |
|
|
Page up/increase |
Screen scroll;Shift cursor and increase values. |
|
|
Page Down/Decrease |
Screen scroll;Shift cursor and decrease values. |
