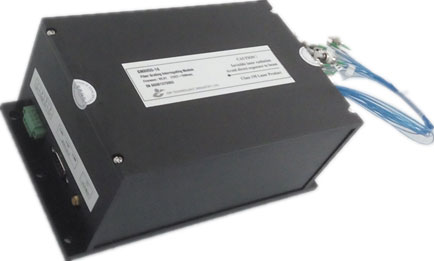

GM8050-48
Date：2018-08-16 Click：4277
performance index
|
Product model |
GM8050 |
|
Number of optical channels |
4 channels / 8 channels / 16 channels / 32 channels/40 channels/48 channels, optional |
|
Wavelength range of built in tunable light source |
1527nm ~ 1568nm |
|
Output power of built in tunable light source |
≥ +10dBm (Optional +13dBm） |
|
Output power per tunable light source |
≥0 dBm |
|
Dynamic range of reflected light detection |
60 dB |
|
Demodulation wavelength resolution |
0.1 pm |
|
line width |
1 MHz |
|
Demodulation speed (following mode) |
≤ 20Hz (Single sensor) |
|
Demodulation speed (fixed mode) |
≤ 2Hz |
|
Real time output data |
Wavelength scanning reflected spectrum
The center wavelength and peak value of FBG sensor
|
|
Trigger signal output interface |
When the light source is scanned, the output pulse trigger signal can be controlled, and the multi-channel photoelectric conversion module with external expansion can be controlled to synchronously collect the FBG sensor signals. |
|
Optical channel interface |
FC/APC adapter |
|
communication interface |
RS232 |
|
Power supply |
DC 12V / 1A power module (select +7~36V power input) |
|
Storage temperature |
-10 ~ +80 ℃ |
|
working temperature |
-5 ~ +45 ℃ |
|
Outline size |
175 x 148 x 63mm (wide, high thickness, 4,8 channel), 200X150X100 (16 channel), 200X270X100 (24,32 channel) |
