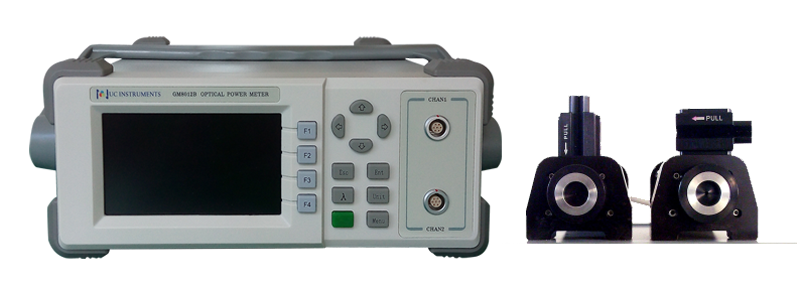

GM8012B+2*GM8300X Optical power meter

Date：2017-02-16 Click：6612

GM8012B optical power meter is mainly used for high precision WDM, DWDM component, AWG optical waveguide grating array element, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifier EDFA optical measurement and application of the optical fiber and other general, superior performance, economical and practical.

GM8012B optical power meter measurement system has the characteristics of high performance, small size, fast start and affordable price. At the same time, we also provide low power, high power, single channel and dual channel optical power meter module for selection, and also can provide customers with up to 16 channels of host system.

Performance characteristics

        High measurement accuracy
        Wide dynamic power measurement range
        Quick start
        A variety of optional power ranges and channel Numbers
        Compact structure
        Price preference

Application range

WDM, GFF, AWG, PLC device test

Insert damage, return loss measurement

Fiber optic sensor, fiber optic cable test

Polarization mode dispersion PMD and polarization correlation loss PDL measurement

Optical fiber, communication R&D laboratory test

Technical index

Model	*GM8012B + GM83001E*	*GM8012B + 2 X GM83001E*
Sensor Element	Single channel InGaAs	Dual channel InGaAs
Wavelength range	850 ~ 1700 nm
Power range	+ 7 ~ -80 dBm
Application fiber type	Standard single mode and multimode fiber, the core diameter of fiber core is 62.5 um
Absolute accuracy	+/- 4% (1200 nm ~ 1610 nm)
Relative accuracy	< 0.02 dB Typical values
Power linearity	<= +/- 0.02 dB (1200 nm ~ 1610 nm, + 0~ -60 dBm)
return loss	> 40 dB
Calibrating period	2 years
Optical input interface	Support for optical fiber clamping insert or FC/PC connector insertion
Communication interface	USB and RS232
Operating temperature	0～ +40℃
Storage temperature	-30～+80℃
Dimensions	GM8012: 200 mm high, 105 mm wide, 250 mm thick
Weight	3.5 kg

Model	*GM8012B + GM83002*	*GM8012B + 2 X GM83002*
Sensor Element	Single channel InGaAs	Dual channel InGaAs
Wavelength range	850 ~ 1700 nm
Power range	*+ 23 ~ -60 dBm*
Application fiber type	Standard single mode and multimode fiber, the core diameter of fiber core is 62.5 um
Absolute accuracy	+/- 4% (1200 nm ~ 1610 nm)
Relative accuracy	< 0.02 dB Typical values
Power linearity	<= +/- 0.03 dB (1200 nm ~ 1610 nm, +20 ~ -40 dBm)
return loss	> 40 dB
Calibrating period	2 years
Optical input interface	Support for optical fiber clamping insert or FC/PC connector insertion
communication interface	USB and RS232
working temperature	0 ～ +40℃
Storage temperature	-30～+80℃
Calibration cycle	2 years
Outline size	GM8012: 200 mm high, 105 mm wide, 250 mm thick
weight	3.5 kg
