GM83006

Date：2017-02-22 Click：5645

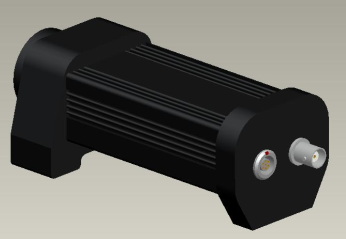

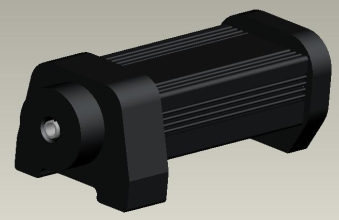

UC INSTRUMENTS GM83006

Power Meter Modules

March, 2013 · Ver: 1.00

Summary

GM83006-II optical power meter probe module is mainly used for high precision WDM DWDM optical waveguide grating array element, AWG element, PLC element planar optical waveguide, optical amplifier EDFA and other common fiber optical measurement and application, high performance, economical and practical.

Specifications

*Model #*	*GM830*06
Sensor Element	single channel InGaAs
Wavelength Range	850 ~ 1700 nm
Power Range	+ 7 ~ -80 dBm
Sampling period	*>=1ms*
Application Fiber Type	Standard single-mode and multimode fiber, fiber core core diameter of 62.5 um
Uncertainty (accuracy) at reference condition	+/- 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	< 0.02 dB Typical value
Linearity (power)	<= +/- 0.02 dB (1200 nm ~ 1610 nm, + 0~ -60 dBm)
Return Loss	> 40 dB
Recalibration Period	2 years
Input interface	Supporting fiber clamping insertion or FC/PC connector insertion
communication interface	RS232
Operation Temperature	0 ~ +40℃
Storage Temperature	-30 ~ +80℃
Dimensions	63mm is high, 43 mm wide and 150 mm thick
Weight	3.5 kg
